Core trays have been designed by professionals, for professionals.

Through innovation

We believe that through innovation, we can provide our clients with professional products that have been designed with very specific geological functions in mind.

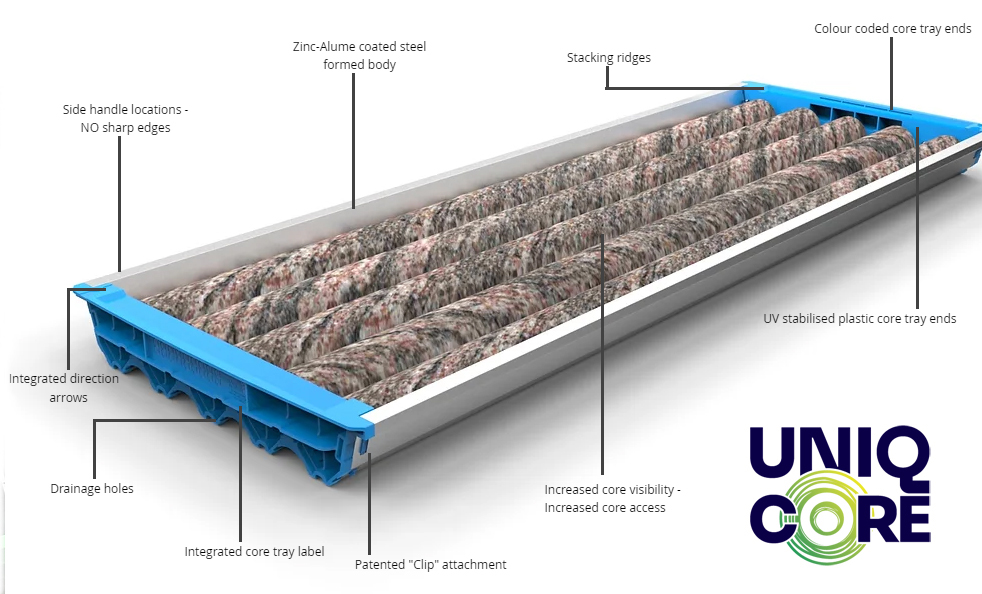

Designed benefits

Operates within the Health and Safety standards
Safe handling system - no sharp edges
Easy assembly - patented clip mechanism
Increased core visibility
Core accessibility which drives efficiencies
Contamination free
Composite materials provide benefits of both plastic and steel
Highly exportable - flat pack
Decreased cost in transport, storage and assembly
Integrated label and directional system

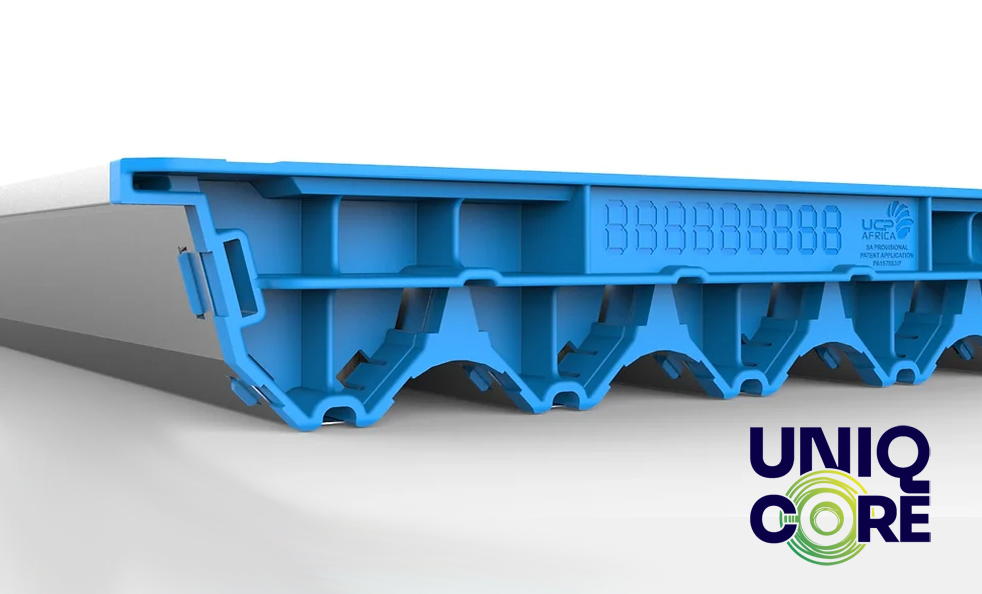

UV stabilised core tray ends
Drainage holes incorporated into the design

Cost-effective transport

The unique flat pack or pre-fabricated design of the UniqCore core trays allows us to maximise the transport cost saving when transporting and storing core trays before they are filled with the core. We can fit 4350 units into a 20 ft. container. Contact us for more info.

Secure your asset

Transport your core with confidence. Clip or slide on core tray lids which will secure your core samples and protect them from the elements. The innovative design does not impede stack-ability so each core tray can have its cover.

Tailor-made colours:

Customise your core trays to your corporate colours or mineralised zones – talk with us about how we can assist you with your project requirements

Core Tray Information

BQ Core Tray

Capacity: 6.79m
Core Tray Dimensions: 1045 x 370 x 50mm
Core sizes: 0 - 36.4mm
Carton Dimensions: 1050 x 380 x 380mm
Meters stored per Carton: 169.75m
Depth Markers included: 57
2 Paint Markers included per Carton
25 units per Carton

NQ/NQ2 Core Tray

Capacity: 4.85m
Core Tray Dimensions: 1045 x 370 x 62mm
Core sizes: 36.5 - 50.5mm
Carton Dimensions: 1050 x 380 x 390mm
Meters stored per Carton: 121.25m
Depth Markers included: 41
2 Paint Markers included per Carton
25 units per Carton

HQ Core Tray

Capacity: 3.88m
Core tray Dimensions: 1045 x 370 x 74mm
Core sizes: 50.5 - 63.5mm
Carton Dimensions: 1050 x 380 x 420mm
Meters stored per Carton: 97m
Depth Markers included: 33
2 Paint Markers included per Carton
25 Units per Carton

PQ Core tray

Capacity: 2.91m
Core Tray Dimensions: 1045 x 370 x 97mm
Core sizes: 63.5 - 85mm
Carton Dimensions: 1050 x 380 x 430mm
Meters stored per Carton: 72.75m
Depth Markers included: 25
2 Paint Markers included per Carton
25 Units per Carton

Core Tray Lids

Secure your core for transport or simply add extra security for sensitive core samples

Clip/ Slide on and off
Does not impede stack-ability function
25 Lids per Carton
